■ 基本信息
復制子: | pUC |
終止子: | SV40 poly(A) signal |
質粒分類: | 哺乳系列質粒；哺乳熒光質粒；哺乳綠色質粒 |
質粒大小: | 4150bp |
質粒標簽: | C-AcGFP1 |
原核抗性: | Kan |
真核抗性: | G418 |
克隆菌株: | DH5a |
培養條件: | 37度 |
表達宿主: | 293T等哺乳細胞 |
誘導方式: | 無須誘導，瞬時表達 |
5'測序引物: | AcGFP-1-F(GCGTCGATTTTTGTGATGCTC) |
3'測序引物: | Sv40-polyA-R（GAAATTTGTGATGCTATTGC） |
備注: | 哺乳細胞啟動子檢測載體 |
■ 質粒屬性
質粒宿主: | 哺乳細胞 |
質粒用途: | 信號報告 |
片段類型: | Promoter
|
片段物種: |
|
原核抗性: | Kan |
真核抗性: | G418
|
熒光標記: |
|
■ 質粒簡介
pAcGFP1-1質粒是 AcGFP的衍生物，來自Aequorea coerulescens。 AcGFP1已經優化了更亮的熒光。（激發最大值= 475nm;發射最大值= 505nm）AcGFP1基因的編碼序列含有沉默堿基變化，其對應于人類密碼子使用偏好。
pAcGFP1-1是一種無啟動子載體，可用于監測插入到多克隆位點（MCS）中的不同啟動子和啟動子/增強子組合的轉錄。AcGFP1上游的序列已經轉化為Kozak共有翻譯起始位點（2），以增強真核細胞中的翻譯效率。AcGFP1基因下游的SV40多聚腺苷酸信號直接適當處理AcGFP1 mRNA的3'末端。載體主鏈含有用于在表達SV40T抗原的哺乳動物細胞中復制的SV40來源，用于在大腸桿菌中繁殖的pUC起始點和用于單鏈DNA生產的f1起點。新霉素抗性盒（Neor）允許使用G418選擇穩定轉染的真核細胞。該盒由SV40早期啟動子,Tn5的新霉素/卡那霉素抗性基因和來自單純皰疹病毒胸苷激酶（HSV TK）基因的多聚腺苷酸化信號組成。盒上游的細菌啟動子在大腸桿菌中表達卡那霉素抗性。
pAcGFP1-1 encodes the green fuorescent protein AcGFP1, a derivative of AcGFP from Aequorea coerulescens. AcGFP1 has been optimized for brighter fuorescence. (Excitation maximum = 475 nm; emission maximum = 505 nm.) The coding sequence of the AcGFP1 gene contains silent base changes, which correspond to human codon-usage preferences .
pAcGFP1-1 is a promoterless vector that can be used to monitor transcription from different promoters and promoter/enhancer combinations inserted into the multiple cloning site (MCS). Sequences upstream of AcGFP1 have been converted to a Kozak consensus translation initiation site (2) to enhance translation effciency in eukaryotic cells. SV40 polyadenylation signals downstream of the AcGFP1 gene direct proper processing of the 3' end of the AcGFP1 mRNA. The vector backbone contains an SV40 origin for replication in mammalian cells expressing the SV40 T antigen, a pUC origin of replication for propagation in E. coli, and an f1 origin for single-stranded DNA production. A neomycin-resistance cassette (Neor) allows stably transfected eukaryotic cells to be selected using G418. This cassette consists of the SV40 early promoter, the neomycin/kanamycin resistance gene of Tn5, and polyadenylation signals from the Herpes simplex virus thymidine kinase (HSV TK) gene. A bacterial promoter upstream of the cassette expresses kanamycin resistance in E. coli.
質粒只保證關鍵序列正確，不保證表達效果。

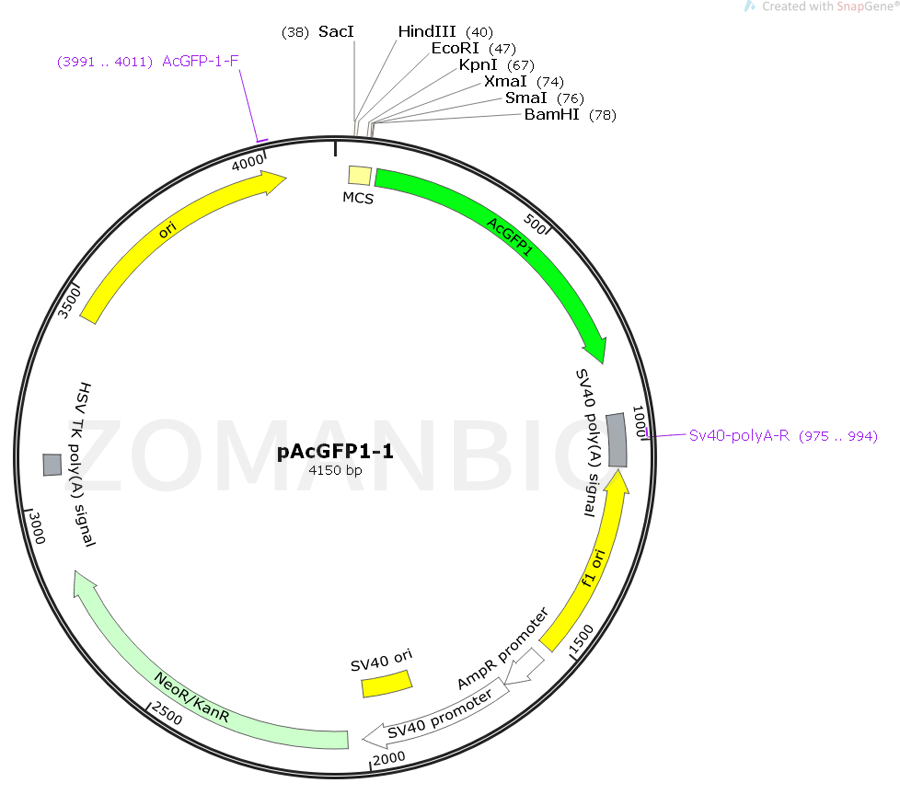

■ 質粒圖譜
■ 質粒序列
質粒序列請下載：
ZK421pAcGFP1-1哺乳啟動子檢測質粒.txt
